PRODUCT DESCRIPTION
LOCTITE ECI 8001 E&C provides the following product
characteristics:
Technology Thermoplastic
Appearance Black paste
Product Benefits ● Screen printable
● Flexible
● Printable on most common substrates
● Rapid heating with fast, defined cut-off
temperatures, no external control
devices needed
Filler Type Carbon
Operating Temperature 65ºC
Cure Hot air drying or infrared
Application Conductive Ink
Typical Assembly
Applications

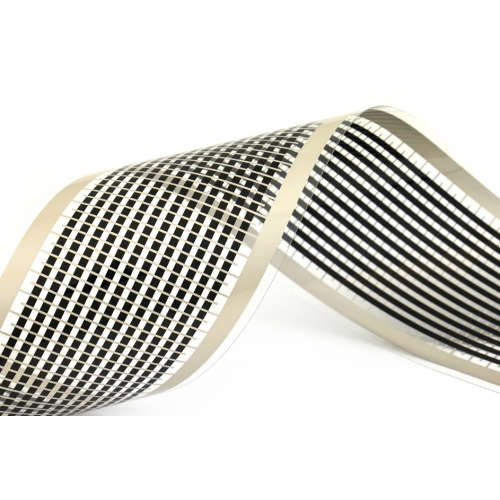

Self regulating heating elements
Key Substrates PET substrates
LOCTITE ECI 8001 E&C is a Positive Temperature Coefficient
(PTC) screen printable ink designed for applications where self
regulating heaters are required. This material is formulated to
rapidly heat to a specific threshold temperature and then
maintain constant temperature for the device.
TYPICAL PROPERTIES OF UNCURED MATERIAL
Solids Content (TGA, 1hour @ 150°C), % 50
Density, g/ml 1.0
Viscosity, Plate & Plate, mPa·s (cP):
Plate 20mm @ Shear rate 15 s
-1 6,500
Thixotropic Index (1.5/15 rpm) 6.0
Theoretical coverage, m²/kg:
@ 10 µm coating thickness 48
Flash Point - See SDS
TYPICAL CURING PERFORMANCE
Recommended Drying Cycle
10 minutes @ 120°C
LOCTITE ECI 8001 E&C can be dried using forced air or infrared
systems. Higher temperatures for longer time exposure will improve
the performance. Care should be taken with infrared. Too much
energy can destroy the coating.
Design drying rates for the maximum the substrate and production
speeds can tolerate.
The above drying profile is a guideline recommendation. Conditions
(time and temperature) may vary based on customers' experience
and their application requirements, as well as customer drying
equipment, oven loading and actual oven temperatures.
TYPICAL PROPERTIES OF CURED MATERIAL
Electrical Properties
Electrical Resistance per 25 µm, kOhm/sq 1.7
Resistance vs. Temperature
Below is the Resistance versus Temperature curve of dried
PTC-ink, measured on a test design.
TYPICAL PERFORMANCE OF CURED MATERIAL
Miscellaneous
Adhesion Strength 5B
PET/PTC ratio >7
GENERAL INFORMATION
For safe handling information on this product, consult the Safety
Data Sheet, (SDS).
STORAGE:
Store product in the unopened container in a dry location.
Storage information may be indicated on the product container
labeling.
Optimal Storage: 8 to 28°C. Storage below 8°C or above
28°C can adversely affect product properties.
Material removed from containers may be contaminated during
use. Do not return product to the original container. Henkel
Corporation cannot assume responsibility for product which
has been contaminated or stored under conditions other than
those previously indicated. If additional information is required,
please contact your local Technical Service Center or
Customer Service Representative.
