正温度系数 PTC油墨

正温度系数 PTC油墨，如有需要请致电13922125860

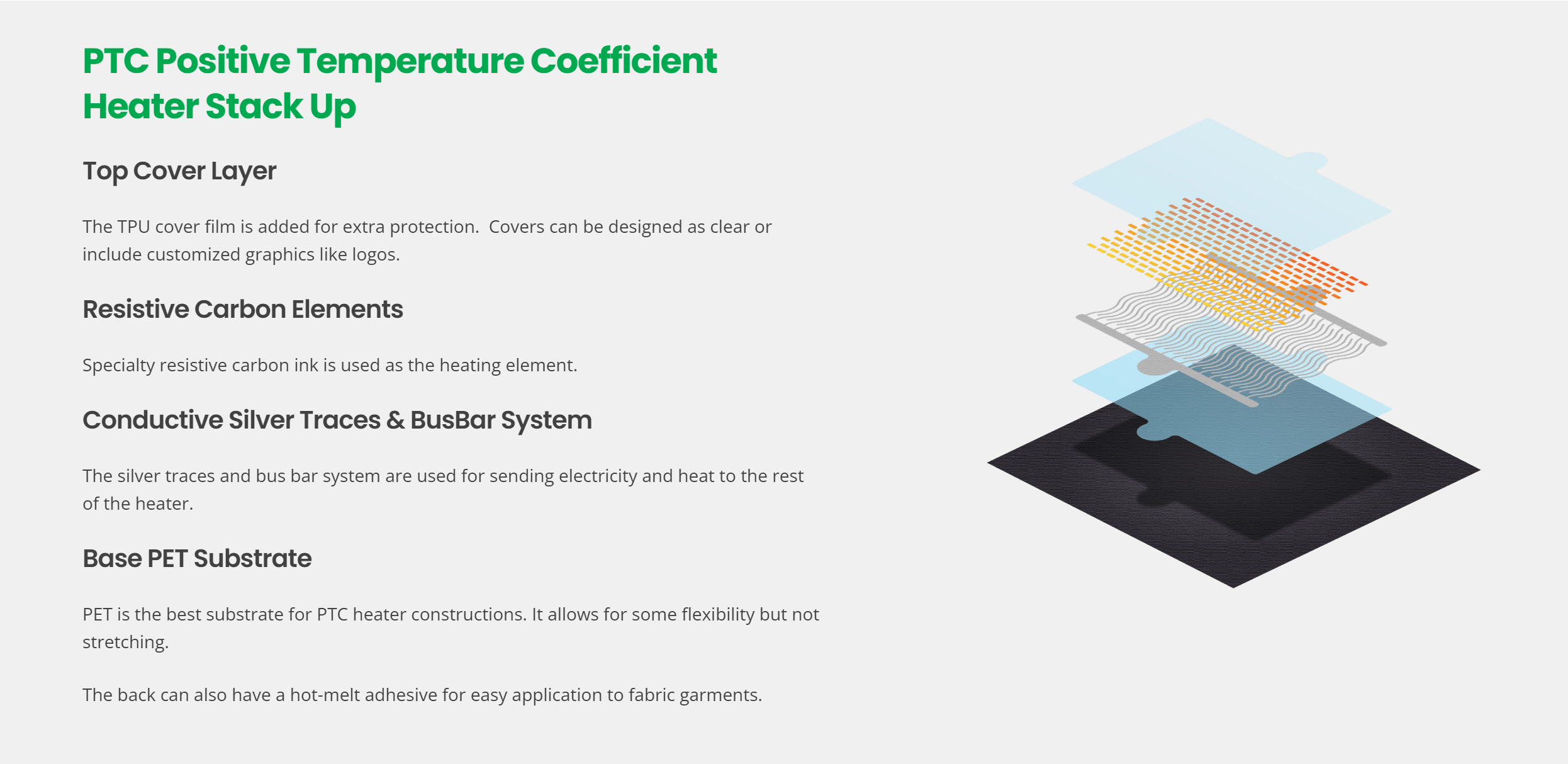

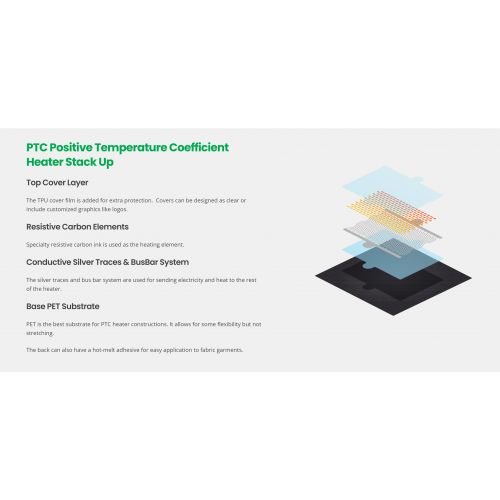

Self limiting Heaters

New Enabling Positive Temperature Coefficient (PTC) Ink Technology

Self-regulating/Self-limiting due to a large resistance increase with increasing temperature

Improved stability

No pre-conditioning needed

Wide range of compatible adhesive

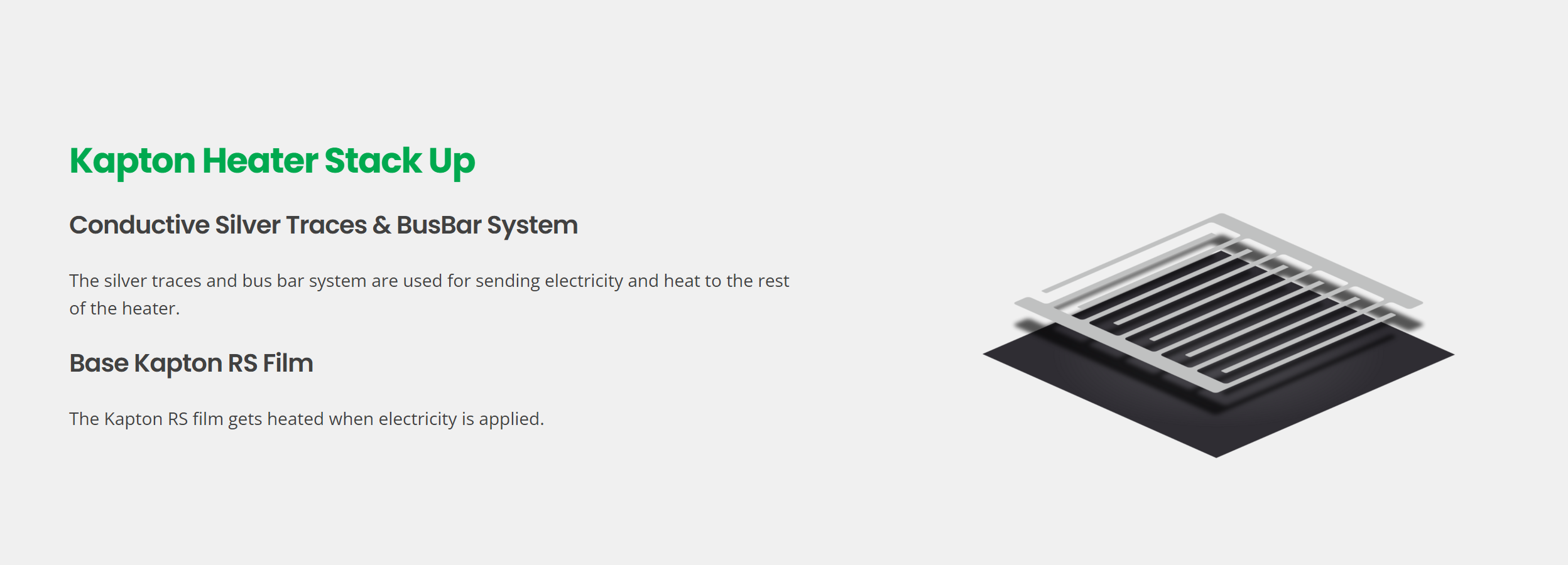

Emerging PE-Kapton™ Inks

Emerging PE-Kapton™ inks is turning the heat up with this ink family that provides extreme Versality and Thermal Performance for applications where extremes of heat and vibration are the norm. Designers have relied on Kapton film because of its ability to maintain its unique combination of mechanical and electrical properties under the harshest of conditions. Now DuPont brings these capabilities to a line of conductive and insulating electronic inks.

Product Description

DuPont™ Kapton™ KA802 is a screen printable and nozzle

dispensable polyimide silver conductor paste. This composition

is particularly suited for applications where high operating

temperatures, high electrical conductivity and high chemical

resistance are required.

Product Benefits

• Ag for high temperature operation up to 300°C for 150 hours

• Excellent conductivity

• Good thermal/chemical stability

• Excellent adhesion to a variety of substrates

• Good crease resistance

• Good flexibility

• Solderable with assistance of Ni plating

*Thermal/Chemical stability varies depending on operating

temperature/time

自限式加热器 全新启用正温度系数 (PTC) 墨水技术 由于电阻随温度升高而大幅增加而实现自我调节/自我限制 提高稳定性 无需预处理 广泛的兼容粘合剂 新兴 PE-Kapton™ 油墨 新兴的 PE-Kapton™ 墨水正在通过这种墨水系列加热，它为极端热量和振动是常态的应用提供极端的多功能性和热性能。设计人员依赖 Kapton 薄膜，因为它能够在最恶劣的条件下保持其独特的机械和电气性能组合。现在，杜邦将这些功能带入了一系列导电和绝缘电子墨水中。 产品描述 杜邦™ Kapton™ KA802 是一种可丝网印刷和喷嘴 可有可无的聚酰亚胺银导体糊。这个组合 特别适用于高操作的应用 温度、高导电性和高化学性 需要抵抗力。 产品优势 • Ag 可在高达 300°C 的高温下工作 150 小时 • 出色的导电性 • 良好的热/化学稳定性 • 对各种基材具有出色的附着力 • 良好的抗皱性 • 良好的灵活性 • 可在镀镍的帮助下进行焊接 *热/化学稳定性因操作而异 温度/时间
